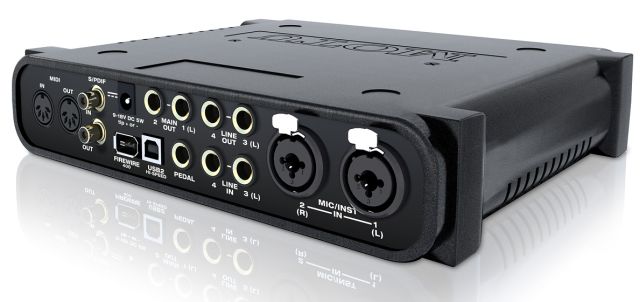

Audio Express Hybrid Interface

MOTU Audio Express Hybrid Audio Interface

• 6-input, 6-output audio interface for Mac and Windows.
• 6 x 8 physical input/output channels - all channels are available simultaneously and operate independently.
• Hybrid FireWire/USB 2.0 connectivity - connect to your Mac or PC via either bus-powered Firewire or hi-speed USB2.
• 8-bus digital mixer - routes and mixes all six inputs to any output pair.
• 4 separate mixes - each output pair (main outs, line outs, S/PDIF out, and phones) can have a completely different mix of all six inputs, with or without computer tracks.
• 4 separate mixes - each output pair (main outs, line outs, S/PDIF out, and phones) can have a completely different mix of all six inputs, with or without computer tracks.
• 2 mic/guitar combo jacks - provide hi-Z 1/4' guitar input or XLR mic input with phantom power, 20 dB pad, Precision Digital Trim, and plenty of gain.
• Stereo analog inputs - on line-level, balanced TRS quarter-inch jacks. Great for keyboards or other line level-input signals.

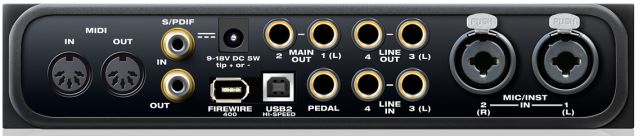

• Stereo main outs - on balanced TRS quarter-inch jacks. Connect directly to powered speakers (or other line-level analog destination).
• Stereo 24-bit 96kHz S/PDIF digital in/out.
• Stereo headphone output on quarter-inch jack with independent volume control.
• Support for standard sample rates up to 96 kHz.
• Precision Digital Trim - digitally controlled analog trim on all inputs provides adjustments in approximately 1 dB increments. Fine-tune the balance of your inputs and then save/recall trim configurations.

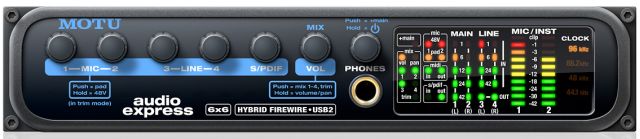

• Front-panel mixing and control - each input has its own dedicated volume knob. Control multiple mixes with clear feedback from front panel LEDs and metering.
• CueMix FX cross-platform mixing software - attractive on-screen graphic mixing with an instrument tuner and audio analysis tools including real-time FFT display, spectrogram 'waterfall' display, oscilloscope, X-Y plot and linear or polar phase analysis.
• Stand-alone operation - bring the Audio Express to your gig, with or without a computer. Just plug in the included power adapter and you are ready to go. Need to tweak the mix? Just turn the front-panel knobs.
• Front panel volume control of main outs and headphone jack.
• Expandable - add additional interfaces for more I/O as your needs grow.
• Time code support - directly resolves to (or generates) time code via any quarter-inch input or output, without the need for an extra synchronizer.
• Direct Digital Synthesis (DDS) - a DSP-driven phase lock engine and internal clock source that produces imperceptibly low jitter characteristics (below the noise floor), even when the Audio Express is resolved to an external clock source via SMPTE time code.
• Sample-accurate MIDI - connect a MIDI controller and/or sound module with no separate interface needed. MIDI I/O is sample-accurate with supporting software.
• Foot switch input - connect a standard foot pedal switch for hands-free punch-in and punch-out while recording. Or map the pedal to any keystroke function in your host software.
• DC-coupled TRS outputs - can be used with VoltaÖ (sold separately) to manipulate and sequence voltage-controlled modular synthesizers from a host DAW.
• Plug-and-play operation with your Mac or PC via FireWire or USB2 - compatible with all current and recent generation Macs and PCs.
• Includes native 32- and 64-bit drivers for Mac OS X and Windows 7/Vista, including ASIO, WDM, Wave, Core Audio, and Core MIDI. Supports all popular Mac and Windows audio software. Full system requirements.
• 100% compatible with all host-based effects processing in today's popular audio programs.
• Includes AudioDesk full-featured sample-accurate workstation software for the Mac with recording, editing, mixing, real-time 32-bit effects processing & sample-accurate sync.
• Bus-powered FireWire operation. No need for external power when operating as a FireWire interface connected to a computer. A power supply is included for stand-alone operation.
• Chassis dimensions, excluding rack ears and front and back panel knobs and connectors: 9.5 × 7 × 1.75 inches (24.13 × 17.78 × 4.45 cm). Knobs and connectors extend up to 0.5 inch (1.27 cm) from front and back panels, adding 1 inch (2.54 cm) to depth. With rack ears attached, fits one half of standard 19 inch (48.26 cm) rack at 1U high.
• Systemanforderungen: MOTU Audio Express-Funktionen
• Mac OS X:
  PowerPC G4 CPU 1 GHz or faster (including PowerPC G5 CPUs and all Intel processor Macs)
  Mac OS X version 10.5 or 10.6; v10.5.8 or later required
• Windows:
  Pentium 4 CPU (or equivalent) 1 GHz or faster
  Windows 7 or Vista, 32- or 64-bit; Vista SP 2 or later required
• Für alle Systeme:
  1 GB RAM; 2 GB or more recommended
  Available FireWire or USB2 port
  Large hard disk drive (preferably at least 100 GB)

Das neue MOTU Audio Express Hybrid ist ein fortschrittliches Audio Interface von MOTU. Wieder einmal wurde der Standard mit innovativen Funktionen und verbesserten Standardfunktionen nach oben geschraubt. Das MOTU Audio Express Hybrid verbinden Sie entweder via FireWire oder via USB mit Ihrem Windows-Computer oder Ihrem Macintosh System.
MOTU nennt das Audio Express auch 'The personal Studio I/O'. Es ist ein einfach zu nutzendes Audio-Interface für Musiker. Schließen Sie Mikrofon, Gitarre, Keyboard oder auch aktive Monitore an das MOTU Audio Express und schon haben Sie alles, um zu musizieren. Für Aufnahmen einfach noch den Rechner via Firewire oder USB 2.0 anschließen und loslegen. Sie müssen kein Kabel mehr umstecken. Das MOTU Audio Express ist eben nicht nur ein Audio Interface, sondern kann auch als Mixer verwendet werden. Sie haben alles unter Kontrolle, da alle Ein- und Ausgänge mit Drehknöpfen zu bedienen sind. Natürlich kann man auch die mitgelieferte CueMix DSP Software für schnelles Routing oder zum Mischen verwenden.
